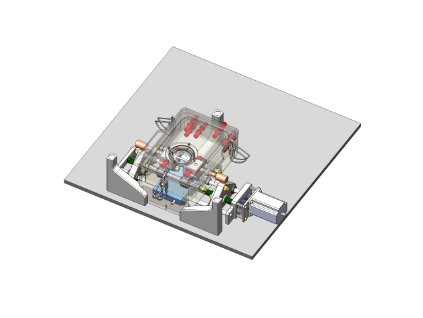

Miniaturized Testing Machine (MTM) for tensile tests was developed by COMTES FHT for quick characterization of additively manufactured material samples. MTM is compact and mobile equipment for mechanical properties measurement. Testing according to the standard ASTM E8 and ISO/ASTM 52909:2022 - Additive manufacturing of metals - Finished part properties - orientation and location dependence of mechanical properties for metal powder bed fusion.

 Parameters:

• Dimensions: 580 x 110 x 95mm (l x w x h)
• Max force capacity: 10 kN
• Cross head velocity:  0.001 - 0.1 mm/min
• Max stroke 30 mm

Options:

• DIC system/ virtual extensometer for direct strain measurement
• Exchangeable grips jaws according to considered sample geometry
